Bushfires Fuel Pyro-cumulonimbus on NSW North Coast: Saturday 22nd December 2001
by Dave Ellem. Additional photos by Michael Bath

1.45pmThe forecast was for a hot day of around 39C with afternoon thunderstorms with hail and squally winds. The day started as many storm days do with a nice moisture haze and a sky filled with altocumulus and altocumulus castellanus. This persisted well into the afternoon. After watching stuff develop south of my place visually I gave Michael the call to let him know what I could see and so we decided to head out. After picking me up we headed towards Woodburn. A rather nice cell had developed to the south and a line of congestus extended to the NW from this cell well into the Border Ranges. As we drove new towers were extending up behind the main cell and were capped with pileus. This continued for a while. The cells seemed fairly high based and weren't all that high topped. Woodburn 3.25pm looking SW In front of this cell there was a bushfire that had started in the Bundjalung National Park. Pyrocumulus (pyrocu) was developing above this but not all that much. The first cell seemed to be heading more easterly than the ENE direction that we believed most storms would move today. As this one seemed to move away another more Woodburn 3.25pm looking WSW impressive congestus cloud got going and developed another pileus cap.  By this stage we had arrived at Woodburn. Although looking promising this cell just couldn't get it together. However as it moved over the bushfire it seemed to take on a pryo-cumulonimbus (pyroCb) appearance and so took off a little more. It still didn't seem to produce a proper anvil and wasn't high topped. We had met up with Rodney at this stage and found a tree to park under to try and shade us from the horrible heat with was approaching the 40C mark! The line of congestus that was extending to the NW seemed to just stay fairly small until it moved over the fires and got a little larger. We had reports of thunder from people at Evans Head on the CB Radio. Out to the west we noticed the anvils of some thunderstorms on the ranges.

Woodburn 3.45pm Woodburn 3.45pm These were to be the ones that came through later in the day. Also on the radio we were hearing of the bushfire beginning to blaze out of control. From where we were we could certainly see this. The line of fire seemed to be extending to the west quite rapidly. Evacuations were beginning in camping ground at Jerusalem Creek. We saw a number of vehicles with trailers and caravans taking all their gear out of the area. It was now that the small cells began to take on an explosive appearance. Awesome boiling updrafts shot out of the smoke haze and billowed upwards, but still not reaching all that high. It didn't matter that these storms weren't really fully developing because the sight of the pyroCb updrafts was just excellent!!!

Woodburn 3.57pm looking SE Woodburn 4.11pm looking SE Woodburn 4.21pm looking SE Woodburn 4.26pm looking SE

Woodburn 4.15pm Woodburn 4.15pm Woodburn 4.15pm We sat and watched these updrafts explode taking numerous shots of the pyro clouds. Then all of a sudden, the  fire that had extended along a west of us began to move N towards us!! The wall of smoke was getting higher and much more ominous. PyroCbs continued to sit on top of the wall of smoke and the contrast looked great. The wall of smoke though was rapidly approaching us. We got word over the radio that the Pacific Hwy had been closed just south of us due to the fire. We watched in awe and excitement until the last minute when the wall of smoke overtook us blocking our view of the cells. We jumped in our cars and were off!! We headed back into Woodburn and headed north hoping to get to a lookout just north of Evans Head.

Woodburn 4.40pm looking SE Woodburn 4.36pm looking S Woodburn 4.36pm looking SSW Woodburn 4.40pm looking SW

As we were driving amazing PyroCb's shot up in the sky to the south of us!!! I was trying to get a shot of them whilst driving 4.50pm looking SE through the back window with my digi. Unfortunately when they came into view as we headed south briefly to get to the lookout it didn't look quite as impressive. All the same when we got to the lookout we raced out of our cars with all the gear to capture the view to the south!! A rather large PyroCb had developed fuelled by the now large bushfires. The smoke haze was very clear underneath it extending inland from right out over the ocean. At this time the southerly changed went through the Evans Hd AWS and was the reason why the smoke had suddenly charged towards us earlier. While watching it we noticed the sea breeze fighting the scorching NW. There were heat ripples everywhere it was that hot (usually a phenomenon seen only over tar roads on hot days). The sea breeze felt like a fridge door opening when it pushed over us but it wouldn't last long before the NW pushed it back. We got word that on the radar storms were heading in an easterly direction towards Casino. So we jumped back in the car and headed for the lookout at Tregeagle. The thick smoke haze was still on our tail all the way back towards Tregeagle. We could see the darkening sky to the west of us and the anvil of the storm stretched overhead. We could still see the PyroCb over the ocean behind us as we travelled, still looking impressive.

Broadwater National Park 4.55pm looking SE Broadwater National Park 4.57pm looking SE Much to our disappointment, just as we reached the lookout at Tregeagle the smoke haze overtook us and was so thick we couldn't see the storm anymore. So there was no point hanging around and we headed back home to wait for the storm to pass over us. Just as Michael dropped me home the smoke haze blew over my home and blocked my view of the coming storm. So I was only going to be able to watch this storm on radar.

Wollongbar There were a few cells in the area. One passed south of my place and hit near Ballina. The other was located NW of my house but was heading in an easterly direction. However the storm developed on it's southern side into a big blob of red on radar and was aligned with my place. Both Michael and I looked set to be hammered by this storm. However just as the storm went through Lismore it split, the one aligned with us heading in a SE direction, the other continuing east, and so managed to split right around both our homes!!! We barely got any rain or winds however a guster did make an appearance through the smoke haze as the storms passed.

Wollongbar The storm seemed to clear out a lot of the smoke haze and as the storm moved off the coast the sky was filled with mammatus!!! It was the best looking mammatus display I had seen. Another storm had developed in Qld to the north of us and after sunset gave a huge backsheared anvil with mammatus. We were then treated to great lightning display! Later on that night I got a report of golf ball sized hail on the southern side of Alstonville, where the large storm with the big red blob on radar moved over. Not a great deal of damage occurred though. A thoroughly enjoyed chase day with many exciting elements of the weather witnessed!!

Wollongbar Wollongbar

A few lightning photos taken by Michael Bath from McLeans Ridges:

McLeans Ridges 8.30pm looking N McLeans Ridges 8.30pm looking N McLeans Ridges 8.30pm looking N McLeans Ridges 8.30pm looking N McLeans Ridges 8.30pm looking N McLeans Ridges 8.30pm looking N McLeans Ridges 8.30pm looking N


From Bureau of Meteorology.

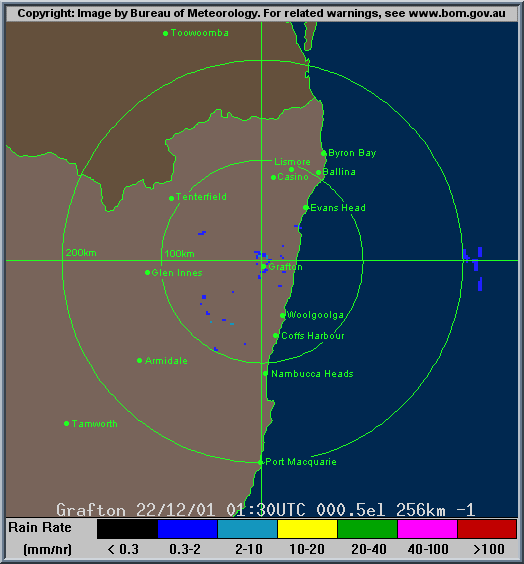

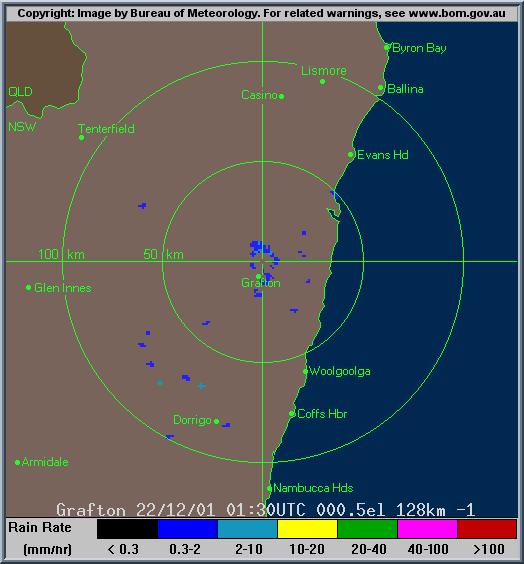

  • Grafton local scale loop 0130z to 1020z 12/22/2001 (12.30pm to 9.20pm local)

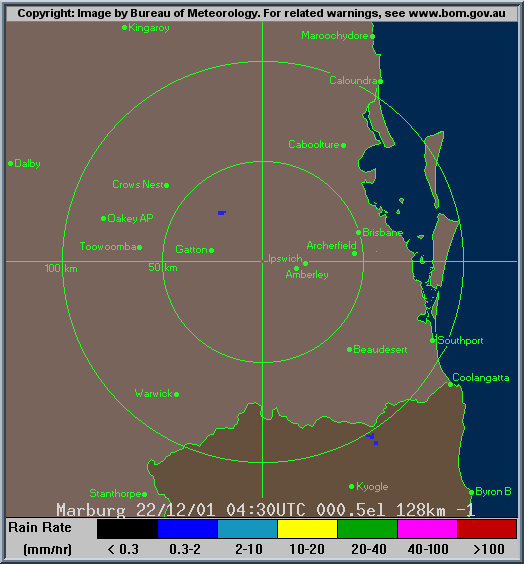

  • Brisbane local scale loop 0430z to 1020z 12/22/2001 (3.30pm to 9.20pm local)
  • Grafton medium scale loop 0130z to 1020z 22/12/2001 (12.30pm to 9.20pm local)

    Satellite Images

    From Bureau of Meteorology.

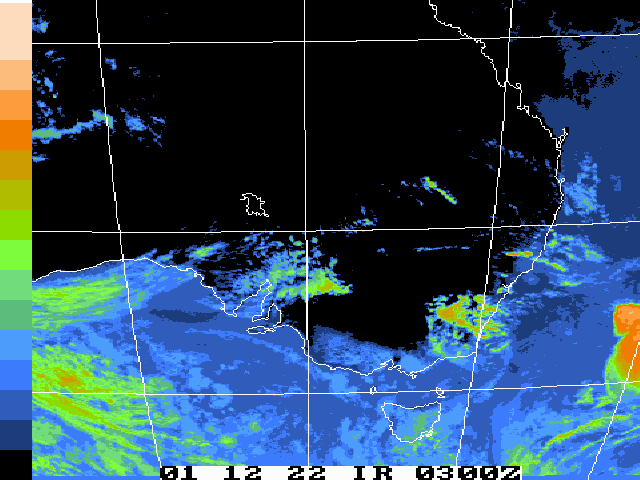

  • GMS-5 Infrared 03z 22/12/2001 (2pm local)

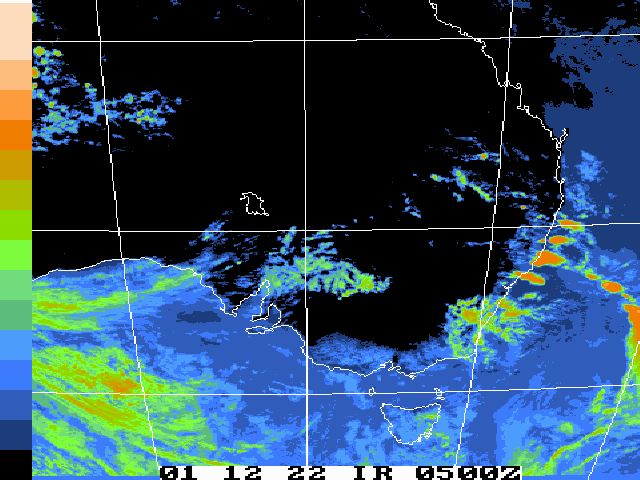

  • GMS-5 Infrared 05z 22/12/2001 (4pm local)

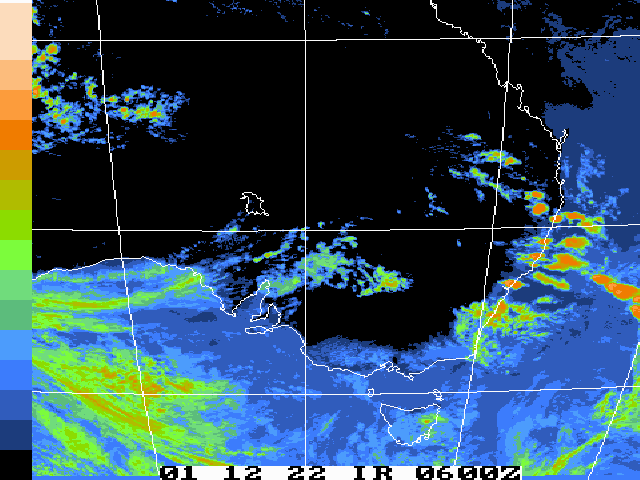

  • GMS-5 Infrared 06z 22/12/2001 (5pm local)

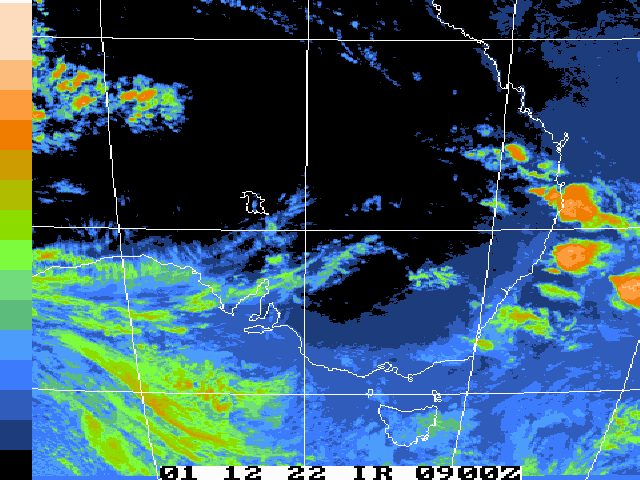

  • GMS-5 Infrared 09z 22/12/2001 (8pm local)

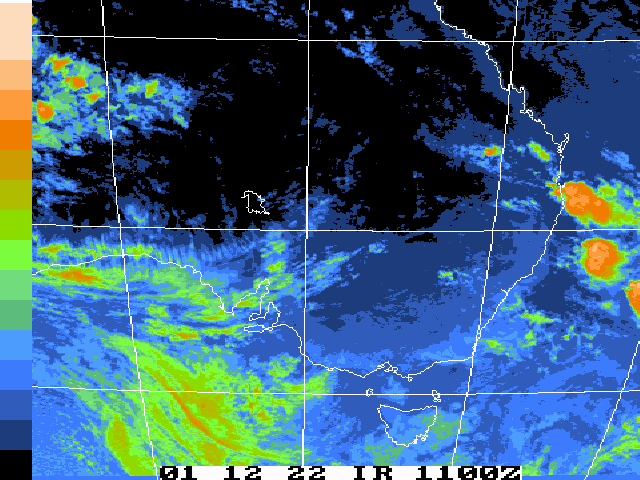

  • GMS-5 Infrared 11z 22/12/2001 (10pm local)

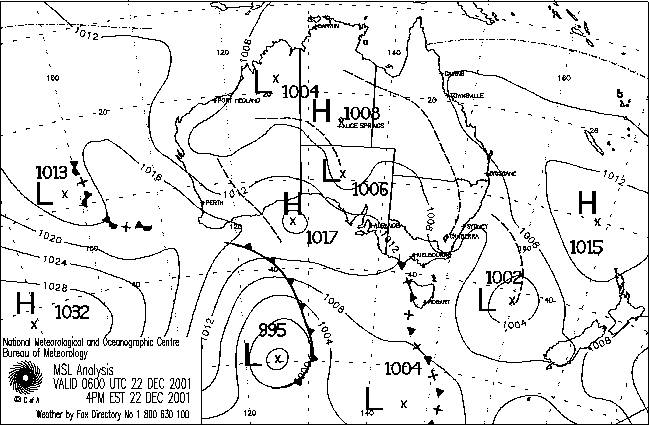

    Analysis Chart

    From Bureau of Meteorology.

    22/12/2001 06z

    AVN Model Analysis

    From NOAA 22/12/2001 06z run analysis

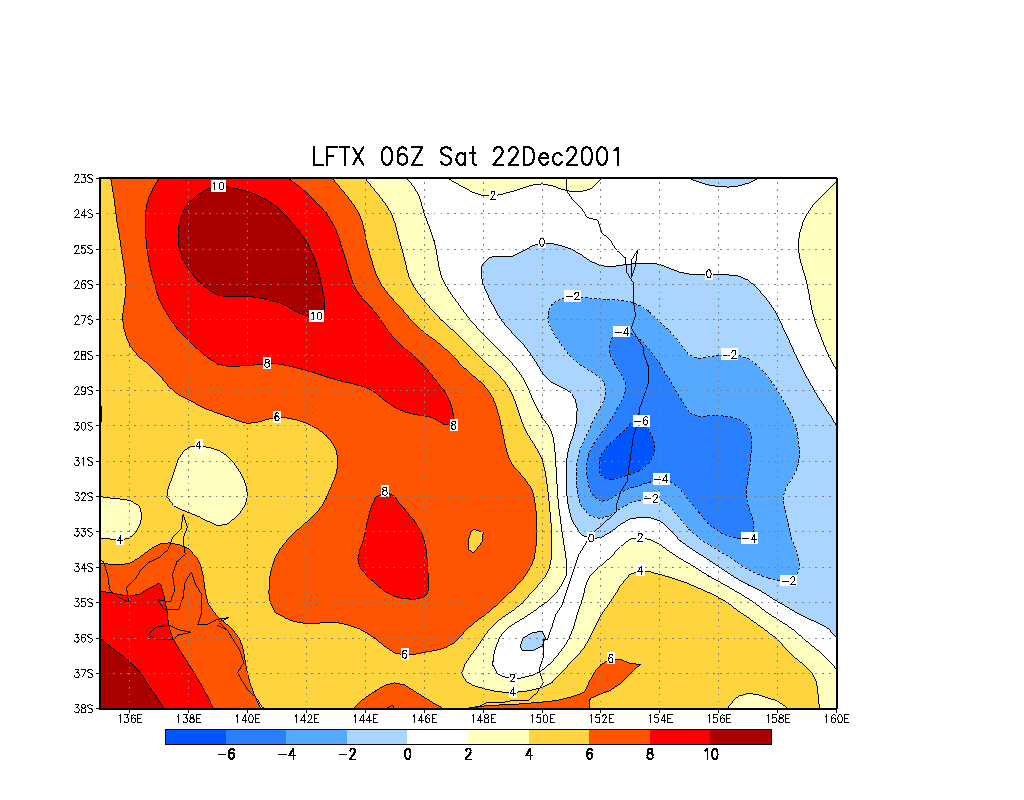

  • Liftex Index

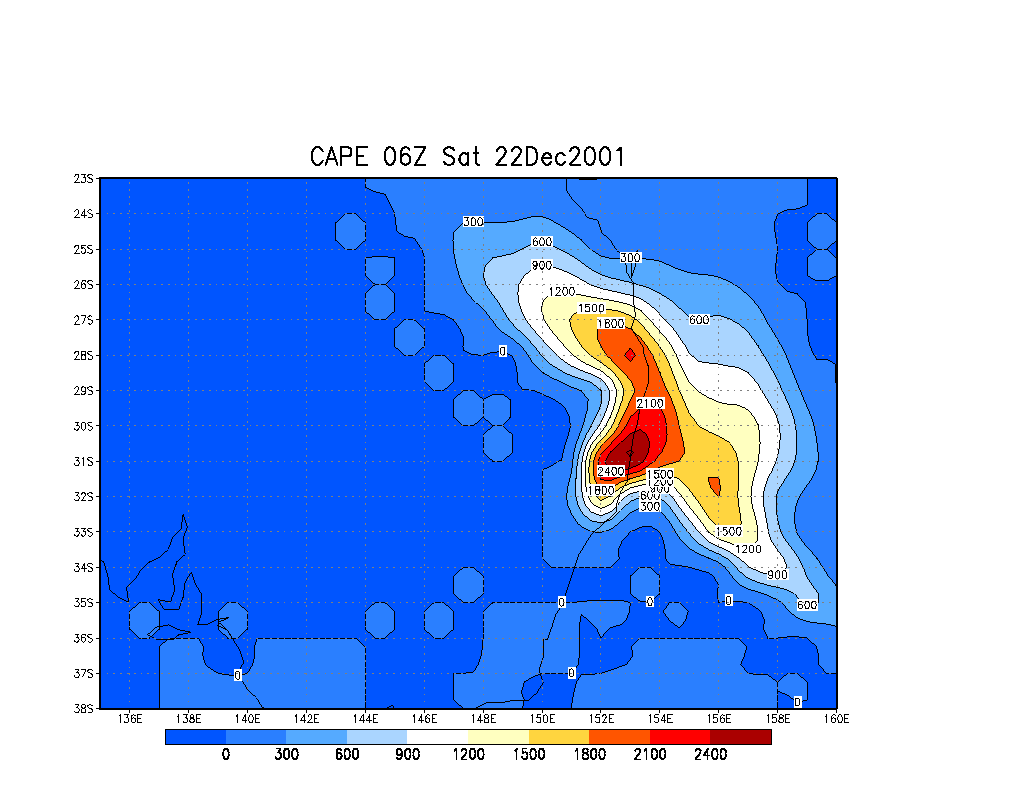

  • CAPE

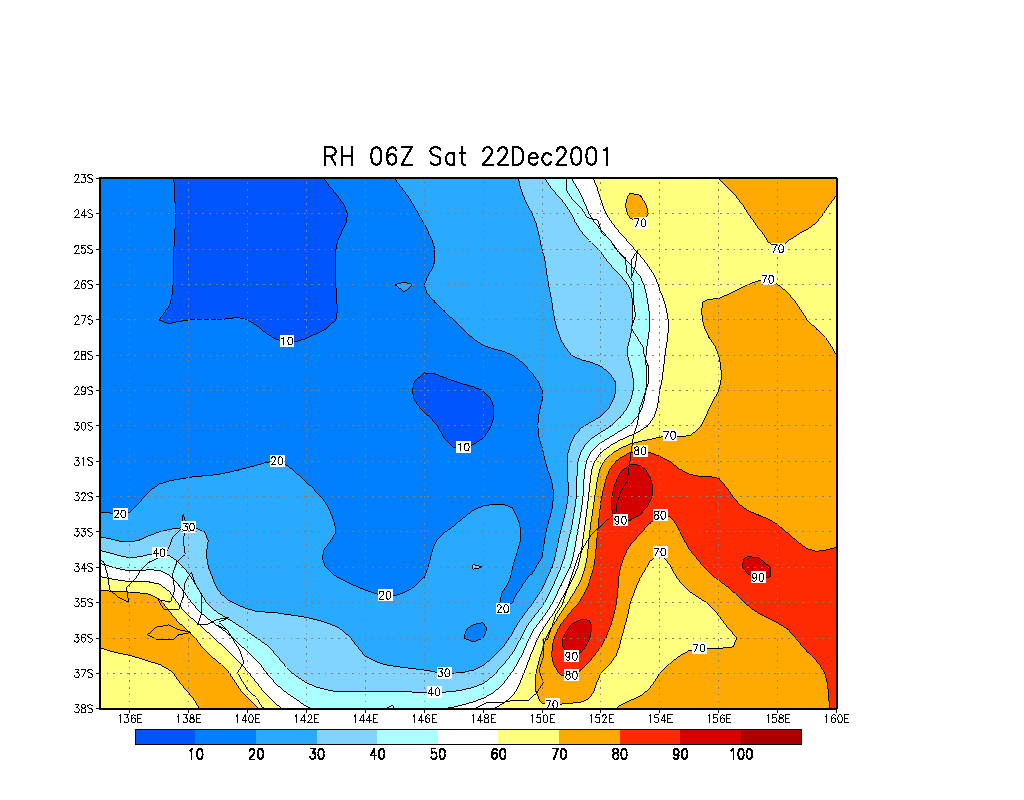

  • Relative Humdity surface

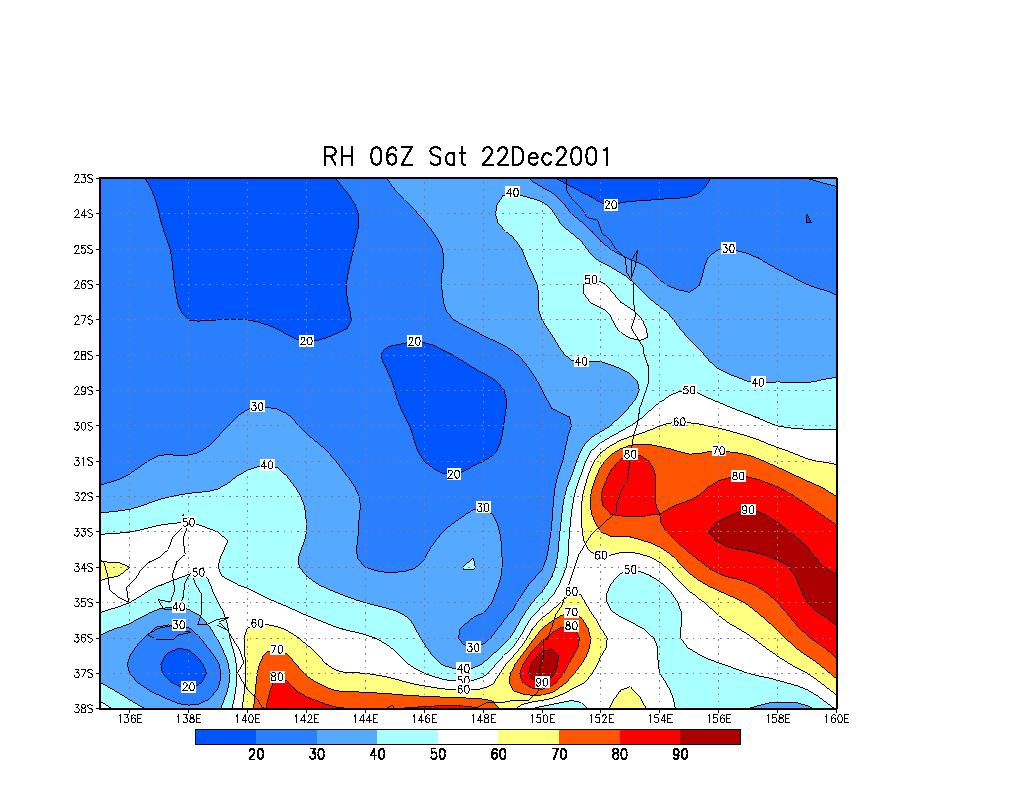

  • Relative Humdity 850 hPa

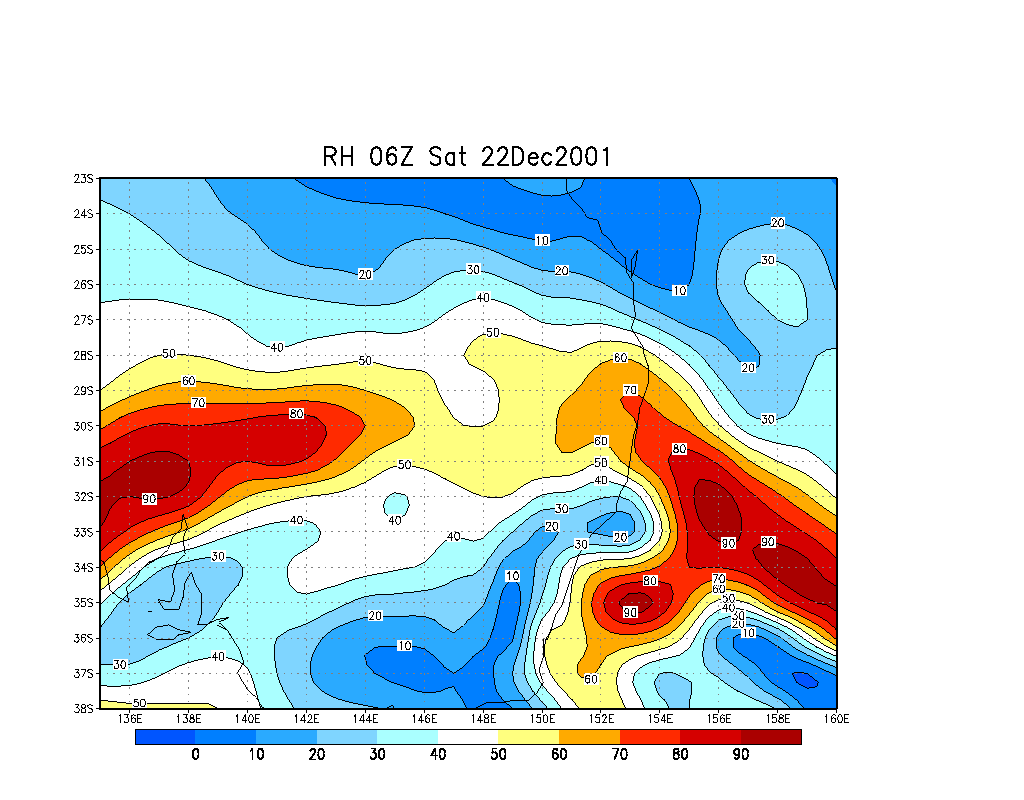

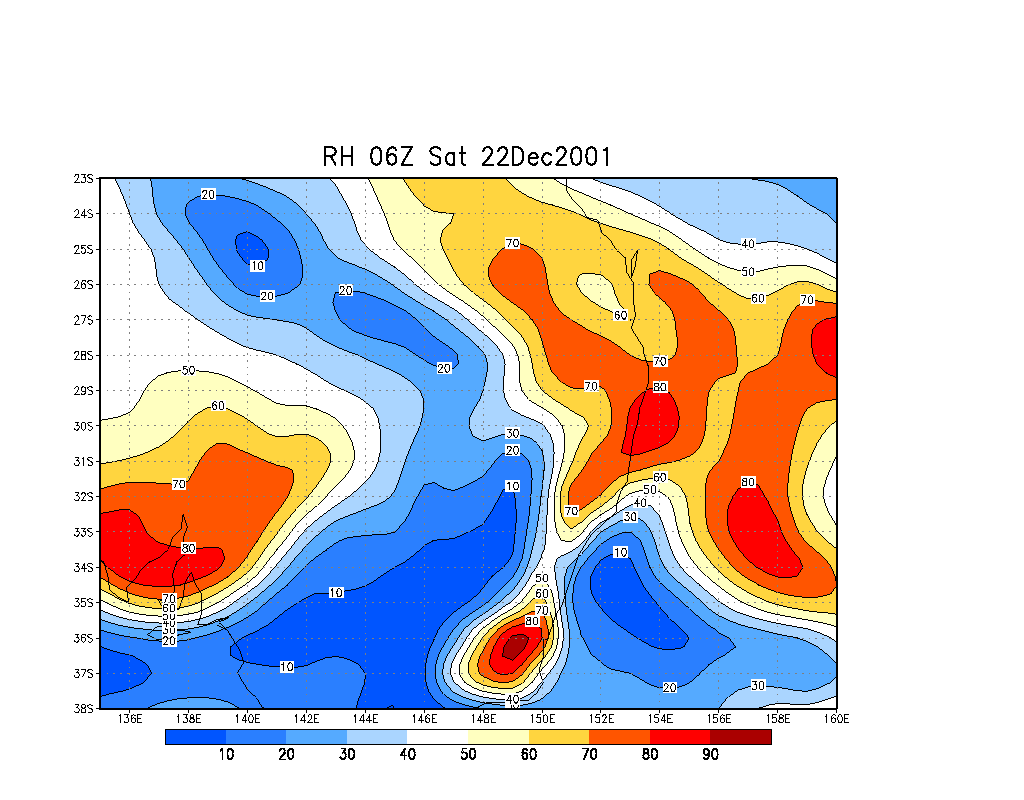

  • Relative Humdity 700 hPa

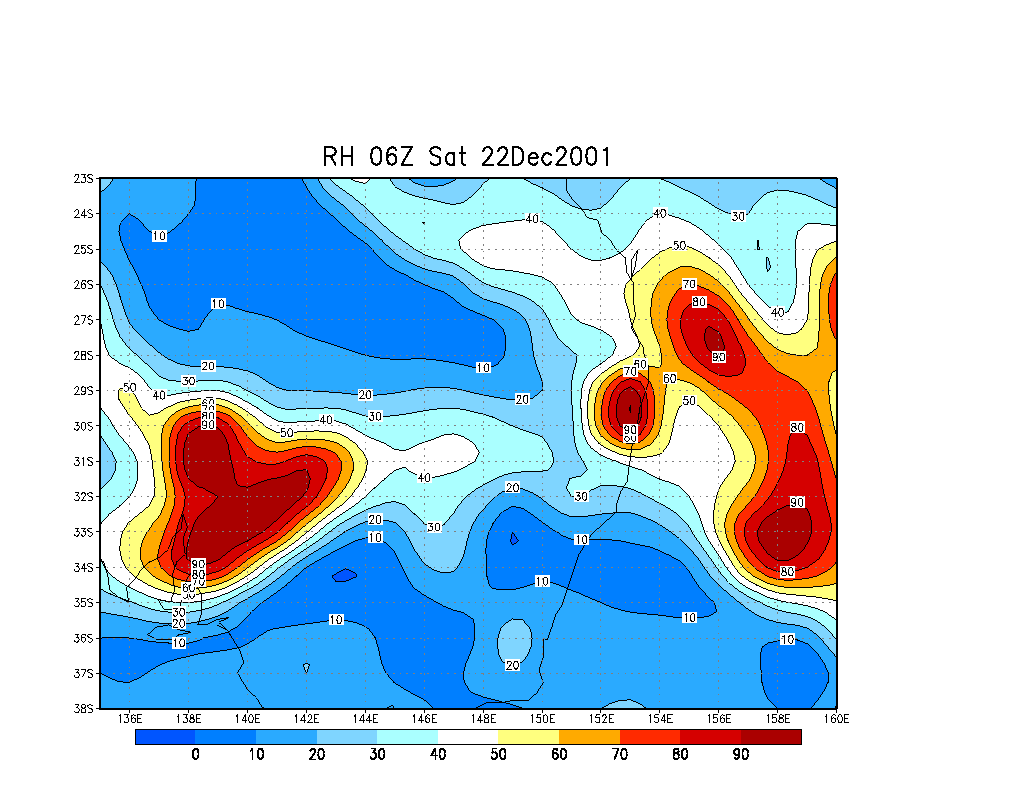

  • Relative Humdity 600 hPa

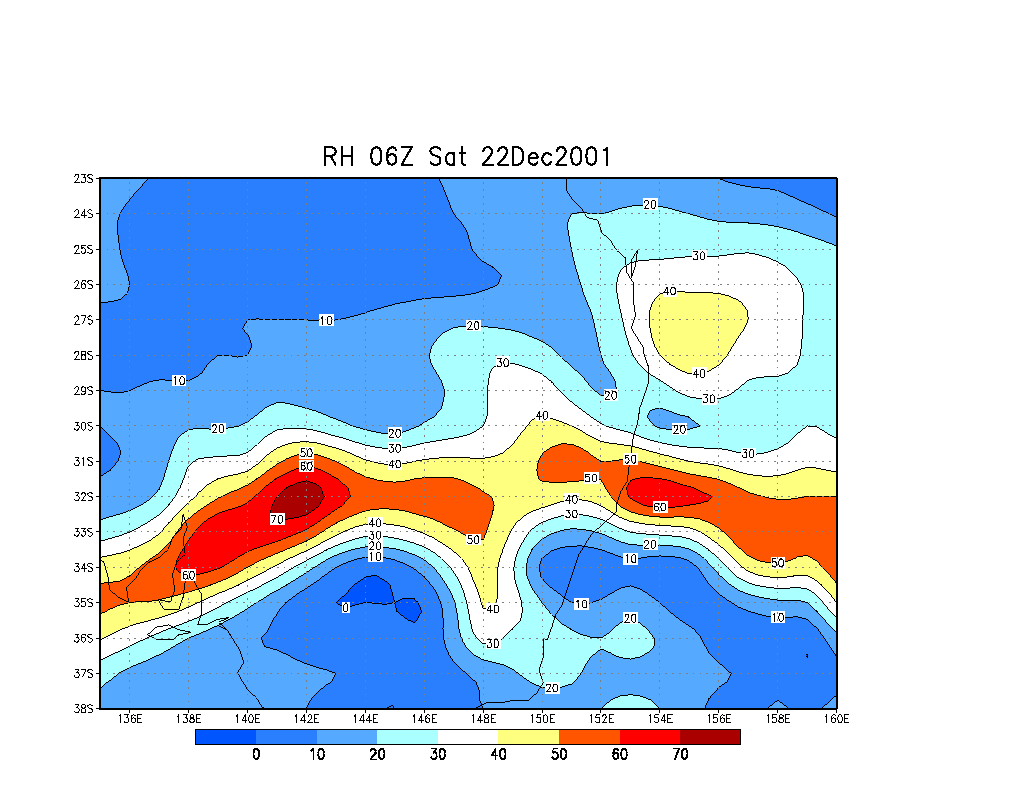

  • Relative Humdity 500 hPa
  • Relative Humdity 300 hPa
  • Temperature (C) surface

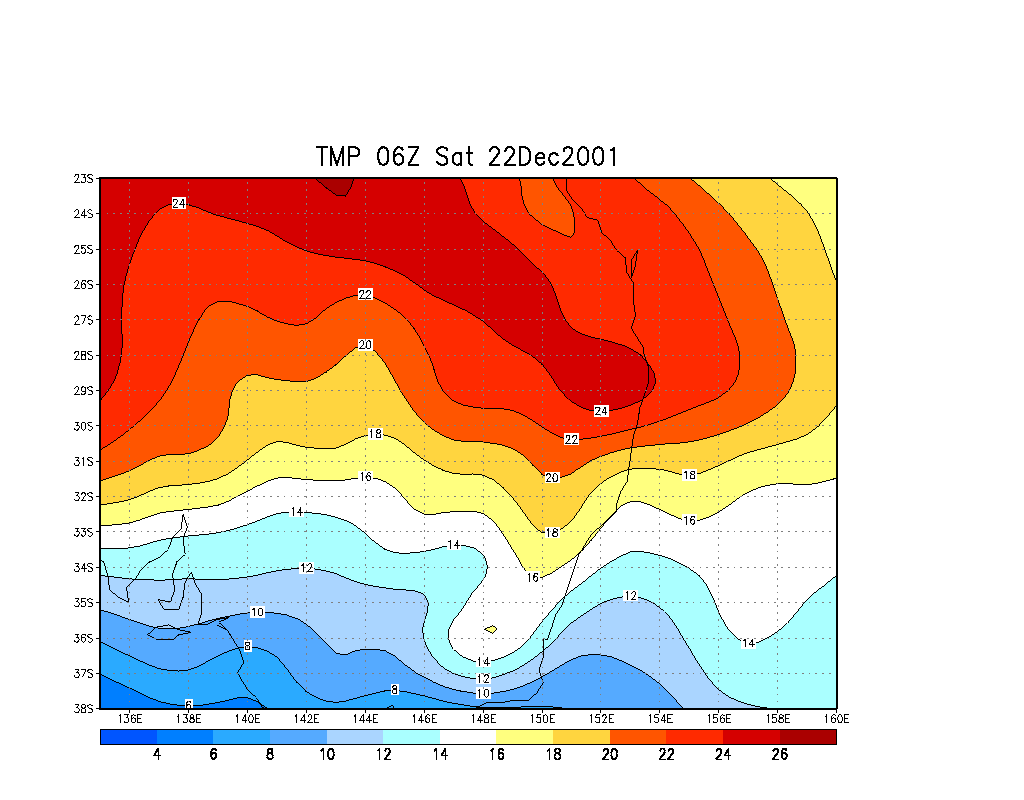

  • Temperature (C) 850 hPa

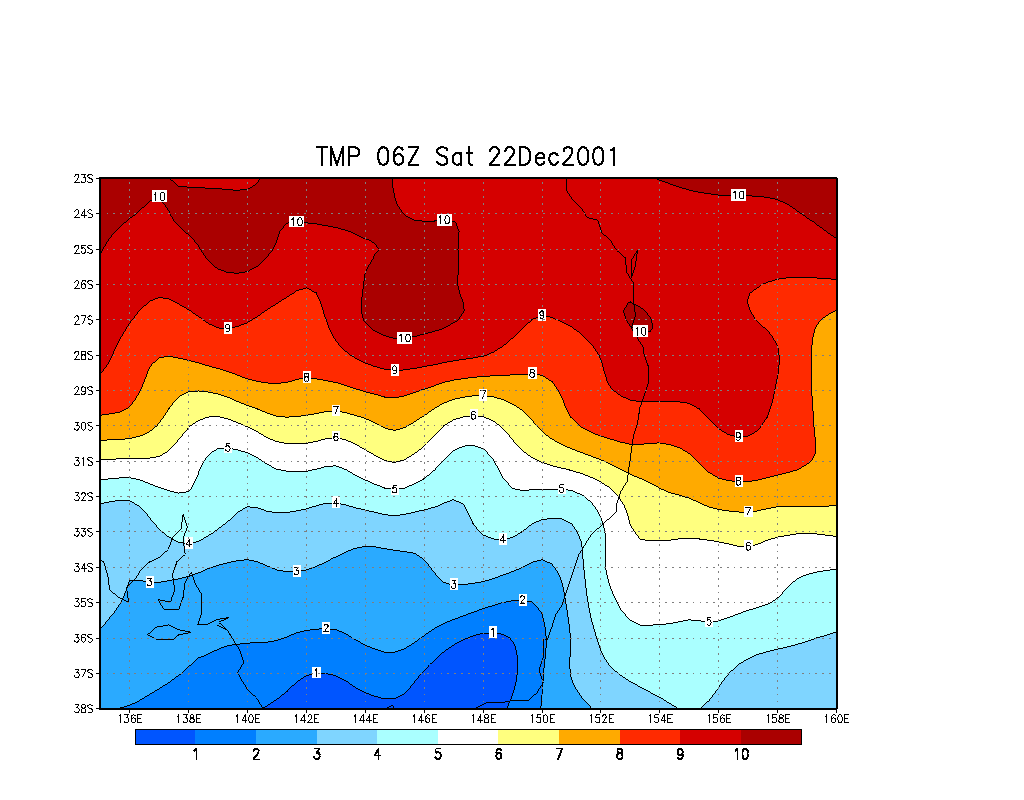

  • Temperature (C) 700 hPa

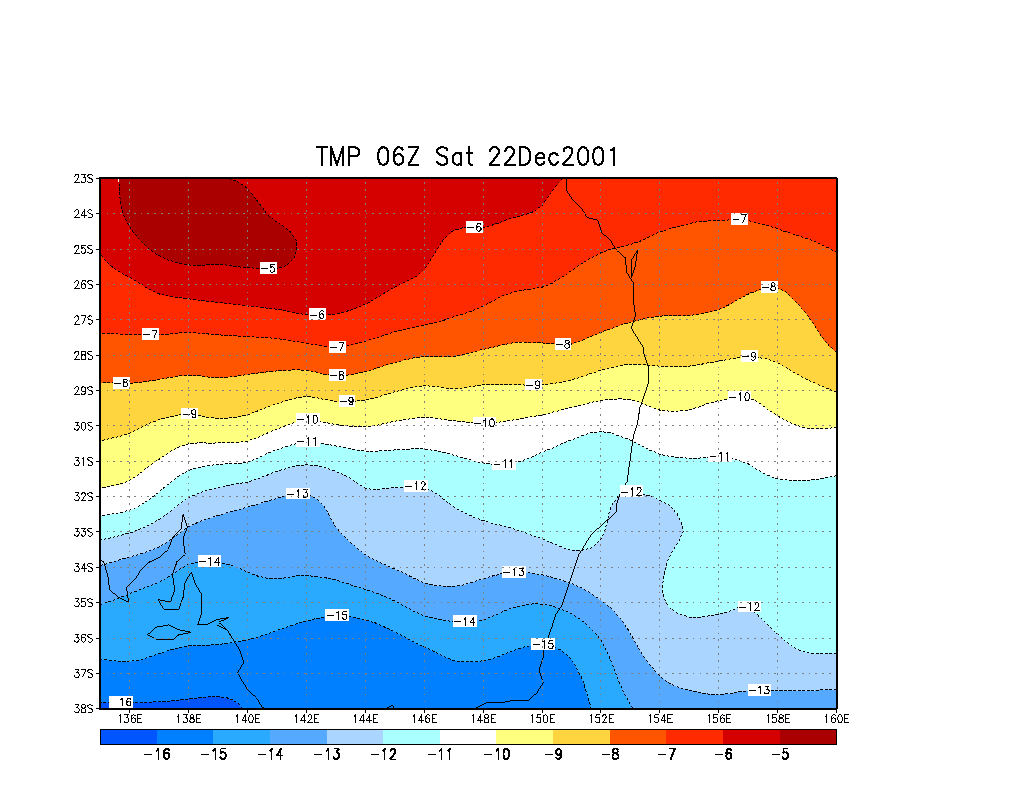

  • Temperature (C) 500 hPa

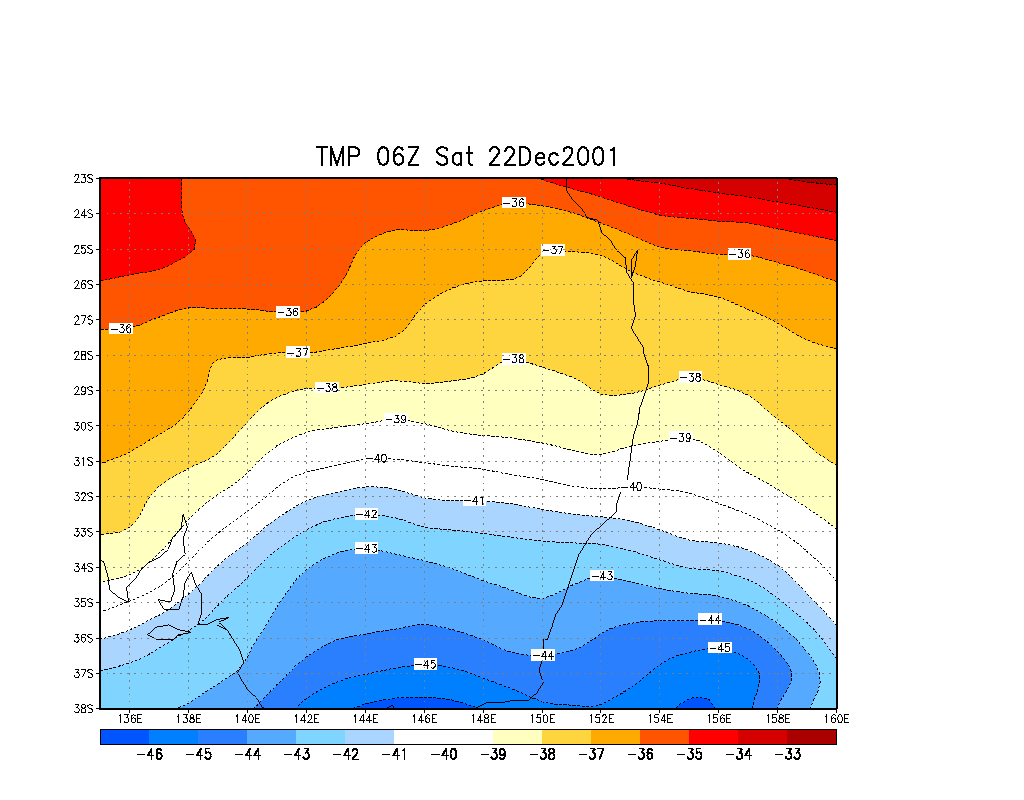

  • Temperature (C) 300 hPa

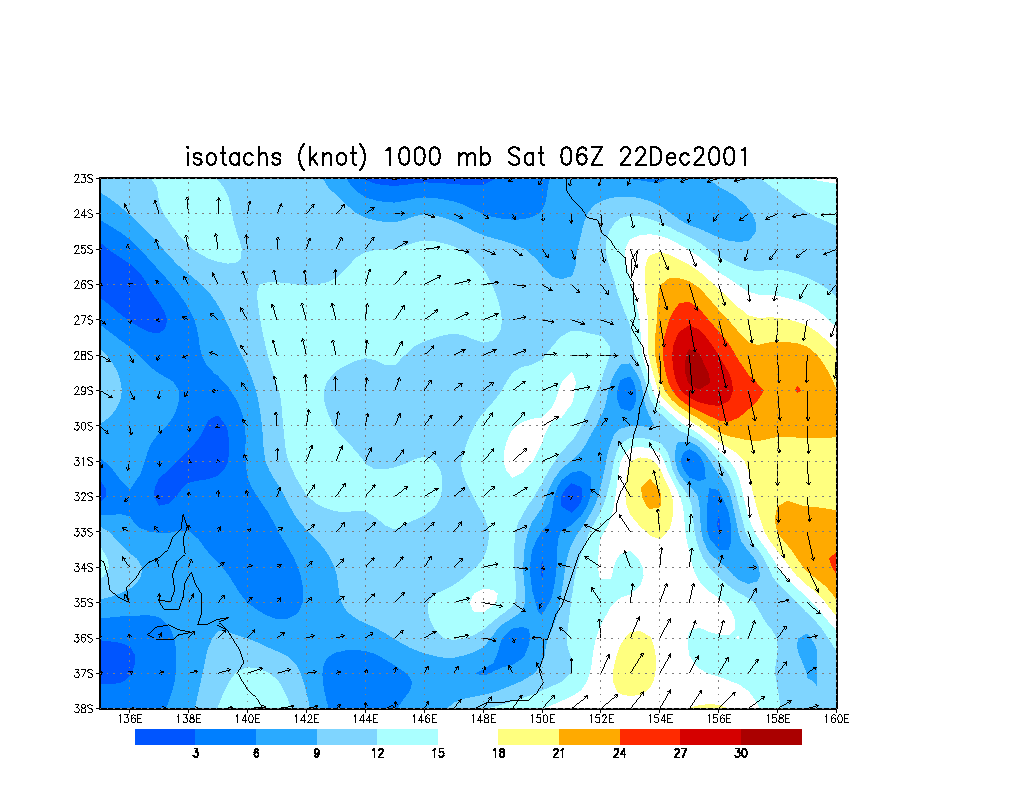

  • Winds (knots) surface

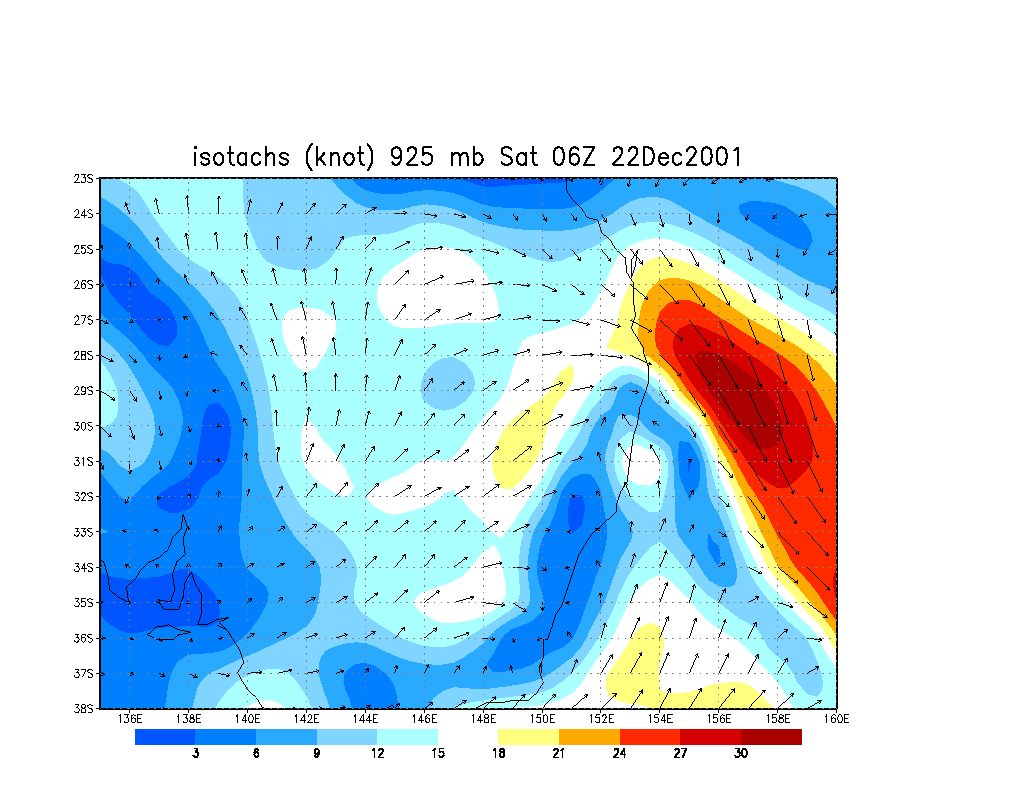

  • Winds (knots) 925 hPa

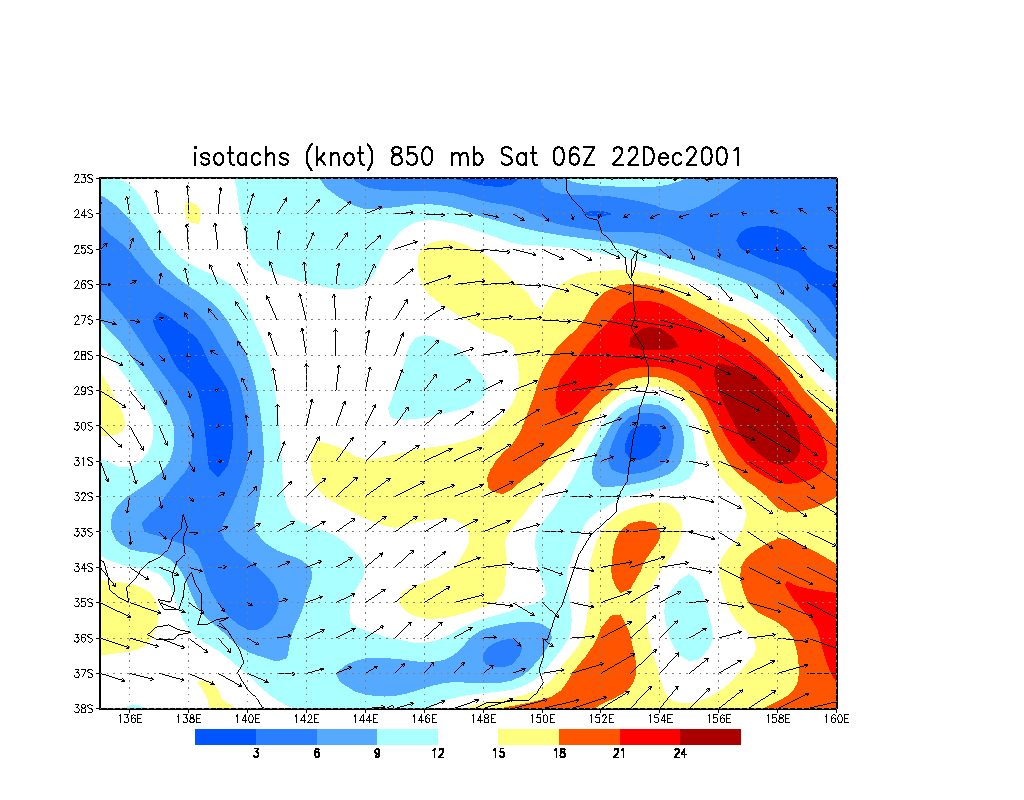

  • Winds (knots) 850 hPa

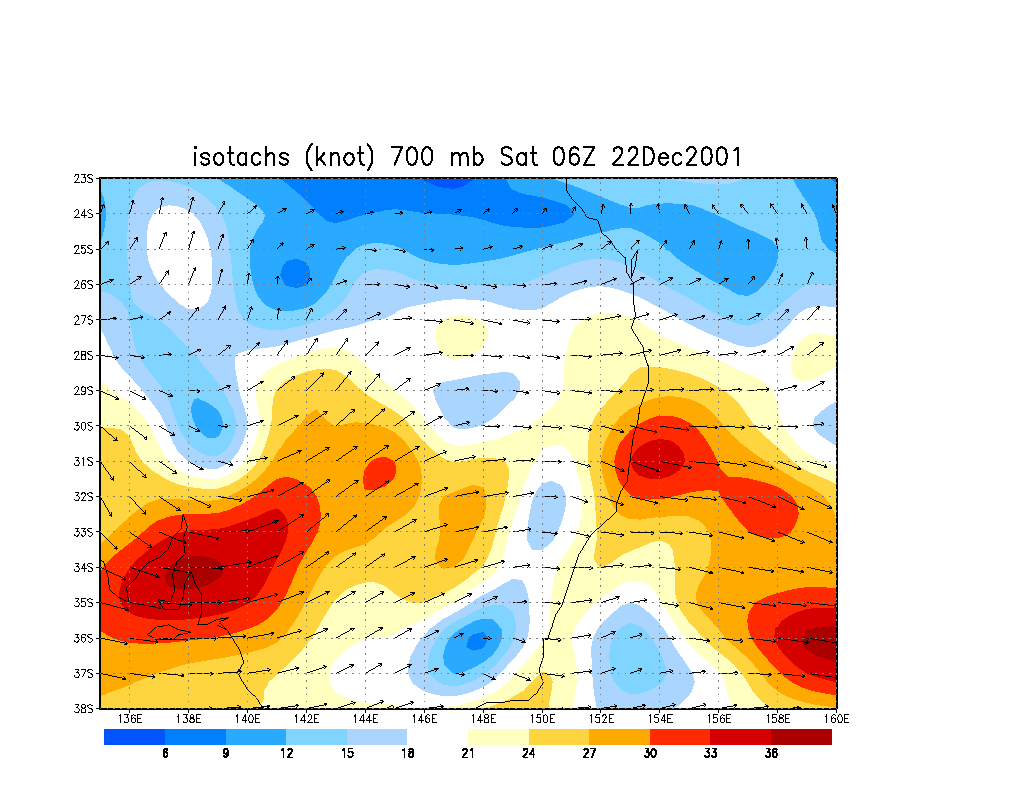

  • Winds (knots) 700 hPa

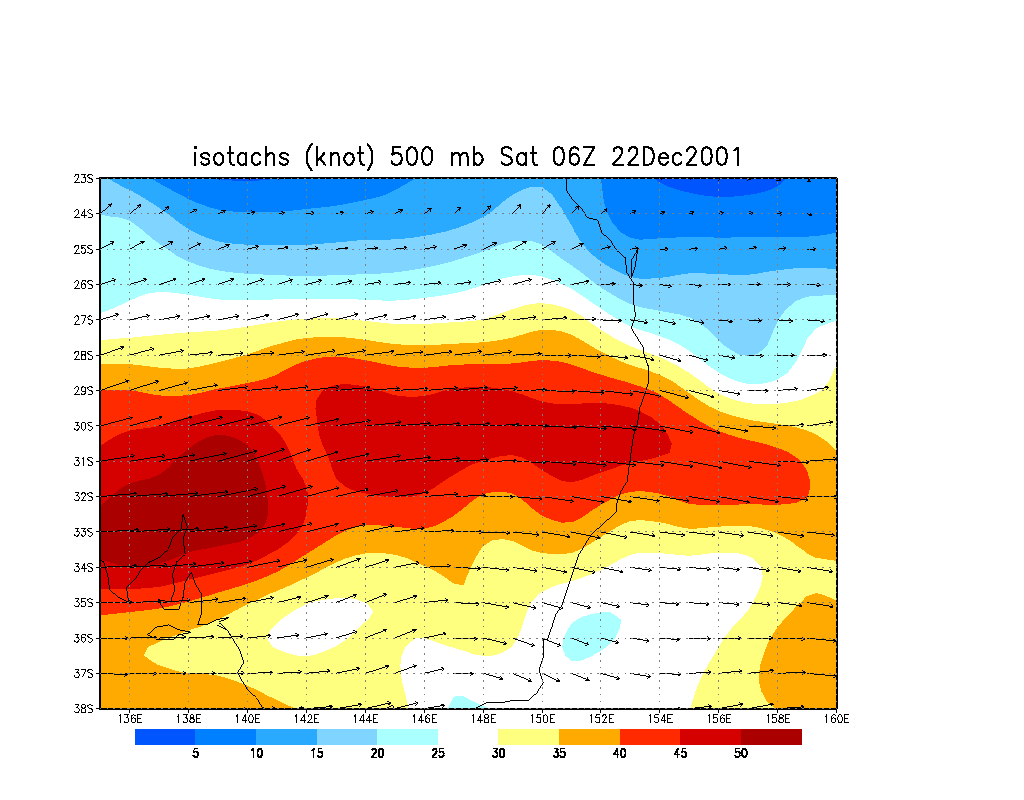

  • Winds (knots) 500 hPa

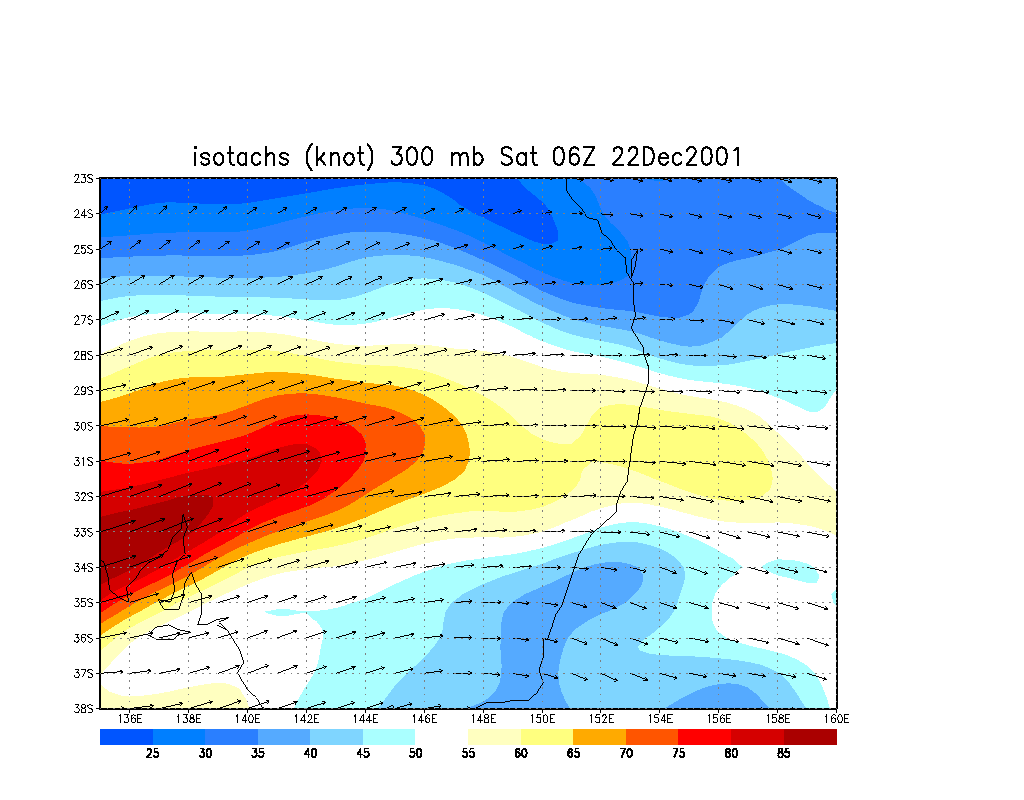

  • Winds (knots) 300 hPa
